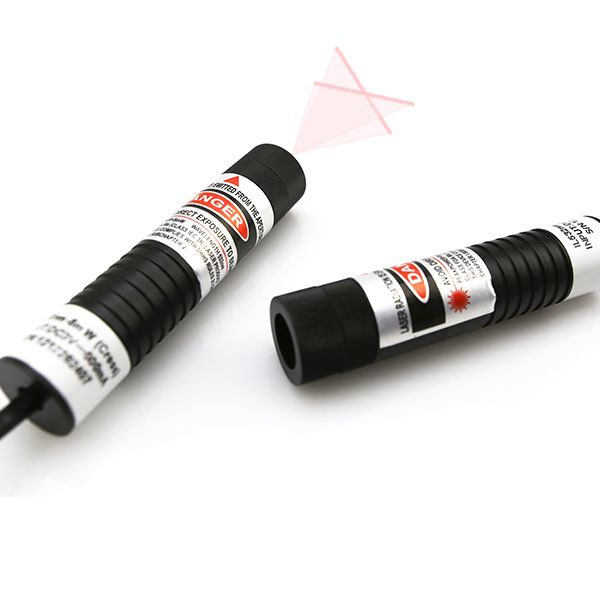

What is good solution for engineers and professionals to make ultra clear and fine cross line generation in industrial manufacturing works? It is not workable at all to only rely on prior manual cross line drawing or printing works, however, it has become a much better chance for them to apply a long wavelength made device of a 980nm infrared crosshair laser module. Being made with an import 980nm infrared laser diode and a qualified glass coated lens inside a durable metal housing tube, connected with an external electric power source, it is primarily used in industrial manufacturing for high-precision two-dimensional positioning, alignment, and inspection. Its concealment and stability allow it to meet the needs of various stages.
Being made with an import 980nm infrared laser diode within 5mW to 500mW and high power up to 600mW to 1000mW, 980nm infrared crosshair laser module gets basic use of a metal heat sink cooling system inside a durable anodized aluminum alloy housing tube. It gets superior nice heat dissipation and ultra table infrared laser light source generation in long term use. Usually IR cross laser alignment allows proper use with night version device or equipment. Whenever it makes continuous infrared cross line projection within 8 to 10 hours per day, it maintains ultra high level of laser beam stability and clear infrared vertical and horizontal lines generation for all precise machinery processing works conveniently.
Owing to the special use of a qualified glass coated lens with 10, 15 and 110 degree fan angles, together with its laser beam divergence fan angle, 980nm infrared crosshair laser module keeps work with good crosshair perpendicularity and straightness. For instance, it maintains high accuracy cross line emission with less than 30″ at a distance of 5m, meeting industrial-grade high-precision alignment requirements. Owing to its invisible infrared laser beam and IR cross line projection from beam aperture, the adoption of infrared cross laser alignment is avoiding visual interference to operators, especially suitable for processing environments requiring light avoidance, such as photosensitive material processing.
Whatever output power it is selected, 980nm infrared crosshair laser module gets unique design of APC, ACC driving circuit board design inside its highly durable metal housing tube. It allows for long term continuous IR cross line projection, maintaining stable laser output in a wide temperature range of -10℃ to 70℃. owing to its ultra compact structure design and specially made electric wires extension, it can be easily integrated with robotic arms, conveyor belts, inspection cameras, and other automated equipment, improving production efficiency.
General applications in industrial manufacturing fields:
Material Processing Positioning: 980nm infrared cross line laser module is used for alignment of fabric textures in textile printing and dyeing; crosshair marking to assist cutting in fabric cutting machines; precise positioning for board cutting and engraving in woodworking machinery; pre-alignment of weld seams before cutting metal sheets.
Automated Assembly Calibration: Crosshair calibration for component installation in automotive production; two-dimensional alignment of PCB boards and casings during electronic device assembly; auxiliary positioning of gripping points in robot assembly operations.
Quality Inspection Assistance: 980nm infrared alignment laser is making clear crosshair coordinate reference marks for surface defect detection, facilitating precise camera capture of defect locations; Dimensional deviation detection of extruded products, serving as a reference baseline.
Equipment Debugging and Maintenance: Horizontal and vertical calibration of production line equipment; optical path calibration and focus positioning of laser processing equipment.
